Insulated Open End Wrenches

SKU

6MV

Product Details

Dip-coated insulation
2-Layer colour insulation coating 6 mm to 16 mm wrenches
3-Layer colour insulation coating 17 mm to 32 mm wrenches
For working on live equipment up to 1000 V according to IEC 60900
Made of high performance alloy steel
Opening tolerance according to ISO 691
2-3 Multi-layer coating with different colours indicating safety, danger or high danger. Plus a 4th one in black to further protect handle edges
This provides protection as well as creating a visual warning system
If the outer insulation layer gets damaged, the lighter colour underneath will become visible and warn the user
Each and every tool is tested to 10.000V for 10 seconds at the end of the manufacturing cycle

Documents

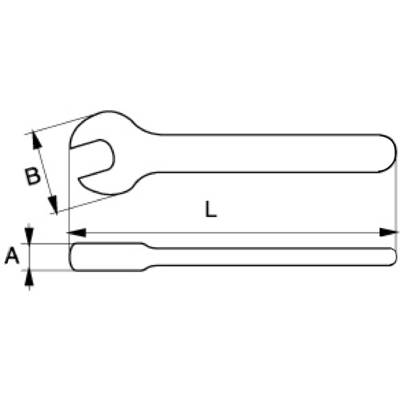

Technical Details

Grouped product items
Product
6MV-8	8 mm	92 mm	4 mm	18 mm	40 g
6MV-9	9 mm	98 mm	4 mm	21 mm	45 g
6MV-10	10 mm	108 mm	5 mm	24 mm	55 g
6MV-11	11 mm	116 mm	5 mm	26 mm	60 g
6MV-12	12 mm	125 mm	5.5 mm	28 mm	70 g
6MV-13	13 mm	135 mm	5.5 mm	31 mm	75 g
6MV-14	14 mm	140 mm	6 mm	31 mm	85 g
6MV-15	15 mm	150 mm	6 mm	33 mm	90 g
6MV-16	16 mm	157 mm	6.5 mm	34 mm	105 g
6MV-17	17 mm	162 mm	6.5 mm	37 mm	120 g
6MV-18	18 mm	170 mm	7 mm	39 mm	145 g
6MV-19	19 mm	175 mm	7 mm	42 mm	150 g
